Description
Features
- Reliable communication:Completes EMC test, it has strong anti-electromagnetic interference ability, high stability and reliability
- Accurate detection: Rate of rise & fixed temperature algorithmsatisfies a variety of complex scenarios
- Flexible installation: Non-loosening screws on base terminal for easy installation
- High endurance: Contacts material is highly acid-resistant and rust-resistant
- Relay output: The output status can be controlled through a relay.
Technical parameters
| Parameter | Introduction |
| Electrical | |
| Working Voltage | DC16V~DC28V |
| Current | l Standby current: ≤ 300uA
l Alarm current: ≤ 7.5mA |
| Indicator | Red LED
l Polling: Flash every 6 seconds l Alarm: Remain lit l Fault: Flash every 2 seconds |
| Communication Wiring | |
| Wiring | Four-wire |
| Addressing Method | Encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m (4921.26 ft) |
| Environment | |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |

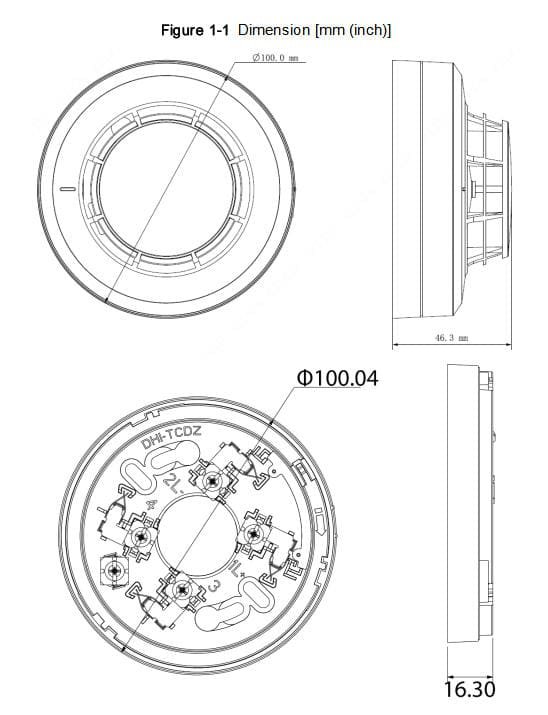

| Dimensions (without base) | Φ100 mm × 46.3 mm (Φ 3.94″ × 1.82″) (with base)
Φ100 mm × 35 mm (Φ 3.94″ × 1.38″) (without base) |
| Weight (without base) | 98.6 g (0.217 lb) (with base)
61.5 g (0.136 lb) (without base) |
| Relay Output | 1A 30VDC |
| Compliance Standard | EN54-5 |
