Description
Feature – Addressable 4 wire Natural Gas LPG Detector with Relay
High-Sensitivity Detection: Incorporates pellistor sensors toprecisely identify gas leaks, triggering alarms at 8% LEL (±3% LEL accuracy threshold).
Selectable Relay Output Types: Jumper-selectable dry contactsignal type (NO or NC)
Selectable Gas Types: Jumper-selectable gas type Natural (Gasor LPG)
Short Warm-up Time: This gas detector achieves warm-up timesbelow industry averages, enabling faster operational readinesscompared to mainstream alternatives.
Two-wire and Polarity-free Design: Two-wire polarity-free designsignificantly simplifies installation and maintenance operations.
Technical Information
| Parameter | Introduction |
|---|---|
| Working Principle | Natural Gas (methane) or LPG (propane) |
| Operating Voltage | DC 24V |
| Operating Current |
|
| Alarm Mode | Indicator light alarm |
| Operating Temperature | −10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Dimensions | Φ100 mm × 46.3 mm (Φ3.94″ × 1.82″) |
| Weight | 105 g (0.231 lb) |
| Color | White |
| Installation |
|
| Detection Capability |
|

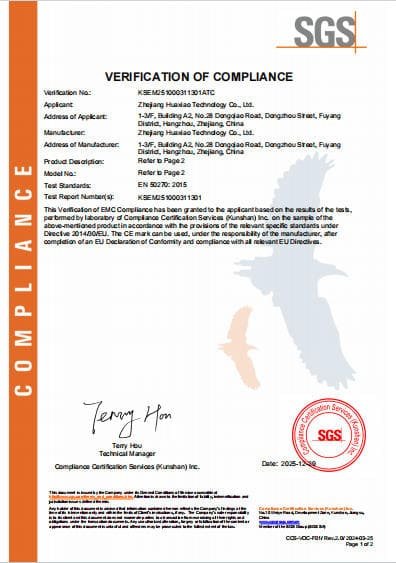

| Certification | CE |
