Description

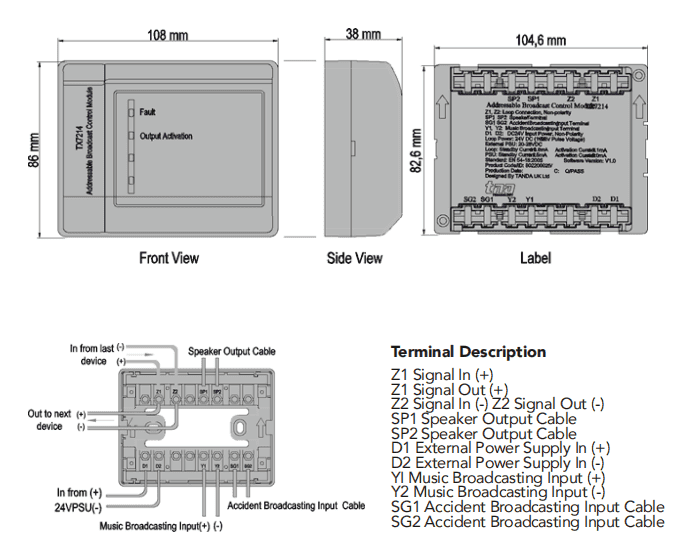

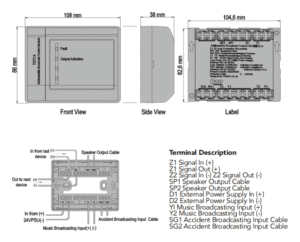

Addressable Broadcast Control Module Overview
The TX7214 manufactured base on the requirement of EN 54 part 18, European Standard.
The TX7214 is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The TX7214 is compatible to the TX7008 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.
Features and Benefits
• EN54-18 Compliance
• Built-in MCU processor and digital addressing
• 24VDC/2A Output relay contact and Control module
• Input Fire or Supervisory signal configuration
• LED status indicator
• Onsite Adjustable Parameter
• Loop or external power input
• Aesthetically pleasing design
• Surface mounting with fix base for simple installation
| Compliance | EN 54-18:2005 |
| Power Rating | |
| Input Voltage | Loop Power:24VDC [16V to 28V External PSU: 20 to 28VDC |
| CurrentConsumptionLoop | Standby 0.6mA, Alarm: 2.1mA External PSU: Standby 1.5mA, Alarm: 9.0mA |
| Control outputvoltage | 24VDC / 2A rating |
| Input Relay | Normally Open dry contact |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| IndicatorStatus | Normal: Fault blink/Active:Output Activation Steady /Fault: Fault Steady |
| Material /Colour | ABS / White Glossy finishing |
| Dimension /LWH | 108 mm x 86 mm x38 mm |
| Weight | 160g (with Base), 89g (without Base) |
| Operating Temperature | -10℃~+50℃ |
| Ingress Protection Rating | IP30 |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
