· Certified by CE
· The product has an explosion-proof rating of Exd ib IIC T6 Gb
· The two-wire, non-polar design allows for quick and easy installation, making maintenance straightforward
· It features automatic sensitivity calibration and supports temperature and humidity compensation, ensuring stable operation over the long term
· The device is designed with a built-in isolation circuit and safety barrier, ensuring safe operation in environments containing flammable and explosive gases or dust
Technical specification
| Working Voltage | DC24V |
| Current | Monitoring current: ≤ 160µA Alarm current: ≤ 210µA |
| Indicator | Red Polling: Flash 6 seconds Alarm: Remain lit Fault: Flash 2 seconds |
| Explosion-proof Rating | Exd ib IIC T6 Gb |
| Protection Level | Explosion-proof section: IP67 Intrinsic safety section: IP43 |
| Address Range | 1–254 |
| Communication Distance | ≤1500 m |
| Operating Temperature | −10°C to +50°C (+14°F to +122°F) |
| Storage Temperature | −20°C to +65°C (−4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Material | Main body: ABS Explosion-proof section: Die-cast aluminum ADC12 |
| Color | Main body: White Explosion-proof section: Red |

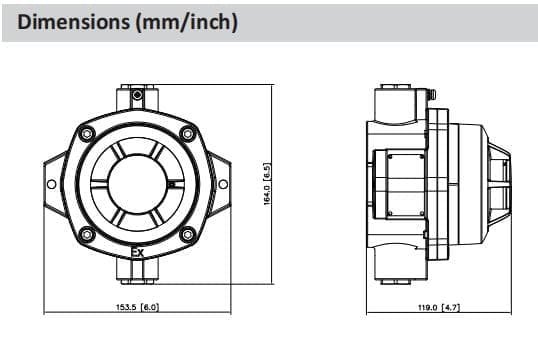

| Dimensions | Main body: Φ100.0 mm × 54.0 mm (with base) Full product: 153.5 mm × 154.0 mm × 119.0mm |
| Weight (with base) | 1.34 kg |

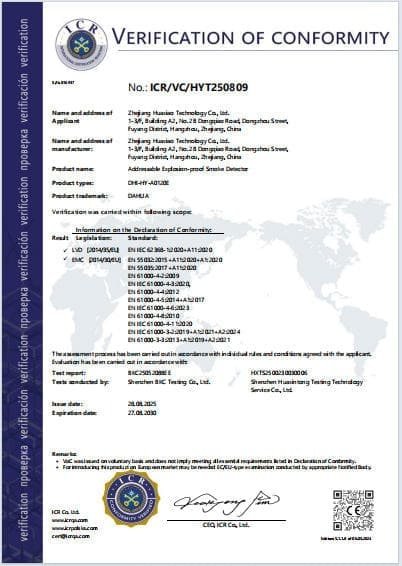

| Certifications | CE |
