Description
Feature
· Sensor contamination monitoring ensures the cleanliness of the system
· Pre-alarm mechanism can effectively reduce the false alarm rate
· Extendable loop number from 1 to 10 loops, cover Max. 2540 points
· The IoT solution with DSS Pro platform and Wisualarm cloud platform
· Real-time monitoring of fire alarm incidents, immediate fire alarm events
· Editable alarm linkage function, support for custom linkage configuration
· 10-inch LCD touchscreen display, graphical interface, and simple operation
· Precise management of fire alarm devices and detailed location of incident sites
· 2-Wire and non-polar bus wiring design, support Class A and Class B topology
· Built-in power management module, covering main power supply and backup power supply monitoring
· Designed in accordance with EN54-2 and EN54-4 standards

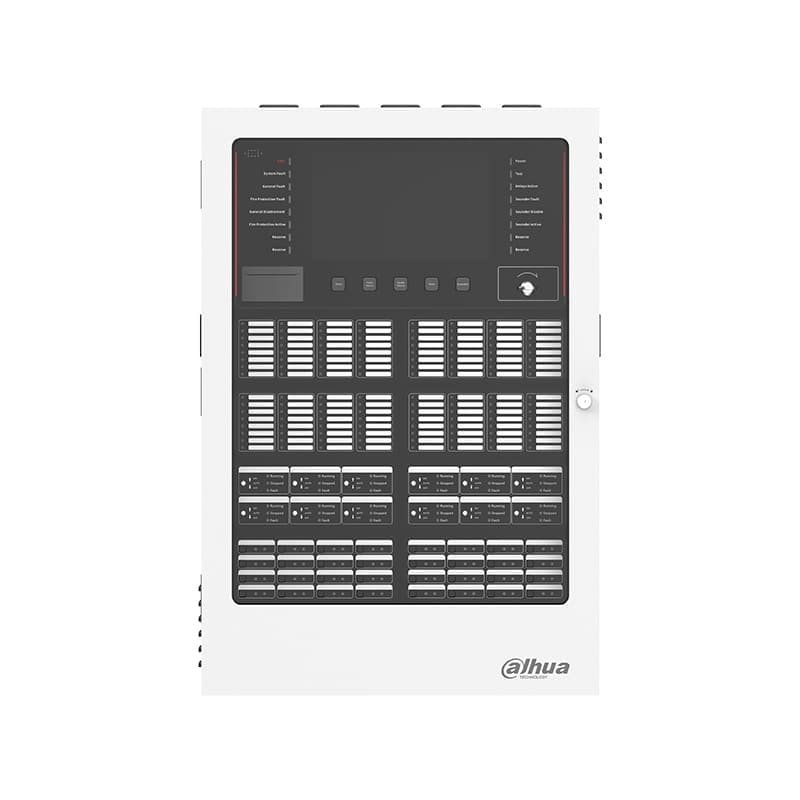

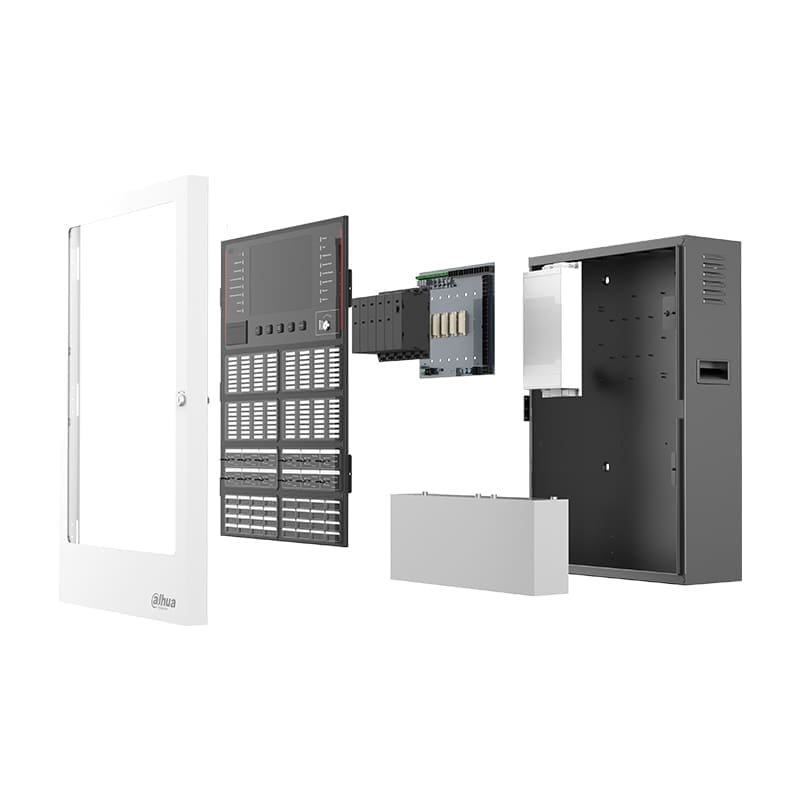

Panel Overview
Technical Specification
Control Panel Specification
| Item | Specification |
|---|---|
| Loop Number | Extendable from 1 to 10 loops, 0 loop by default |
| Loop Capacity | 254 points for each loop |
| Log Record | Max. 5120 |
| Power Supply | AC 100–240V / 50Hz, 60Hz |
| Backup Power | 2 × 12V 40Ah Lead-acid battery (optional) |
| Power Supply Power | 420W |
| Display | 10-inch LCD touchscreen display |
| Printer | Built-in micro thermal printer |
| External Terminal | 1 × USB port, 1 × Network port, 1 × Fault interface (passive), 1 × Fire alarm interface (passive), 2 × Custom passive interface (passive), 1 × Wireless module interface, 1 × DC24V 2A, 2 × RS485, 1 × AUX, 2 × Bell port |
| Product Size | 776.0 mm × 525.0 mm × 262.0 mm |
| Operating Temperature | −10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | −20°C to +65°C |
| Operating Humidity | ≤ 95% RH (no condensation) |
| BELL Port Output | DC28V / 3A |
| 24V Port Output | 2A |
| Compliance Standard | EN54-2, EN54-4 (Applying) |
System Specification
| Item | Specification |
|---|---|
| Loop Number | Max. 10 loops for DHI-HY-5010P |
| Topology Mode | Both Class A and Class B |
| Loop Capability | Max. 254 sensors and modules for each loop |
| Optional Backup Power Supply | Without battery by default |
| Simulated Zone | Every editable 32 addresses form a zone |
| Panel Cascading | Max. 128 panels to cascade |
| Solution Verification | With the help of Dahua Fire (Visualarm) Presale Tool Performance Limitations Communication Distance Required Battery Specifications |
| Configurable Alarm Linkage | With the help of ControlConfig Tool |
| Solution | Online Solution: Visualarm Cloud Platform Local Solution: DSS Pro Platform V8.8 (Server is required) |
| Compatible Cable Specifications | 2 × 1.5 mm² / 2 × 16 AWG |
| Communication Distance | 1500 m (standard) – 3000 m (extendable) |
| Telephone & Broadcast System | Optional peripheral system |
Cascading

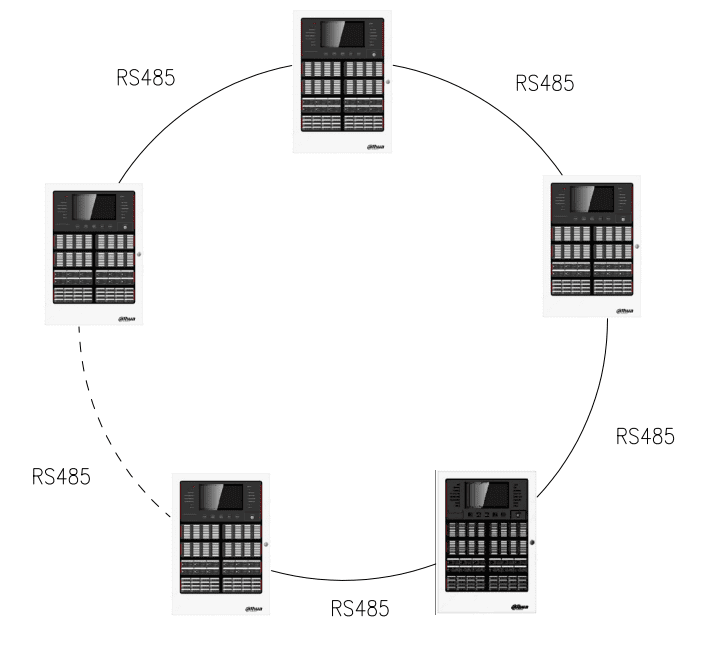

Fire alarm control panels are cascaded through RS-485 ports, with a maximum of 128 panels that can be cascaded.
