Description
Feature
· Convenient wiring: two-wire, polarity-free
· Reliable communication: built-in microprocessor, performance is stable
· Ultra-low power consumption: ultra-low monitoring current and operating current
· Simple installation: with a plug-in structure, easy to install and construct
· Designed in accordance with EN54-18 standard
Technical Specification
| Electrical | |
|---|---|
| Working Voltage | 24V DC |
| Current | Monitoring current: ≤ 150µA Operating current: ≤ 190µA |
| Indicator | Red indicator flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned |
| Communication | |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m |
| Environment | |
| Operating Temperature | −10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | −20°C to +65°C (−4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |

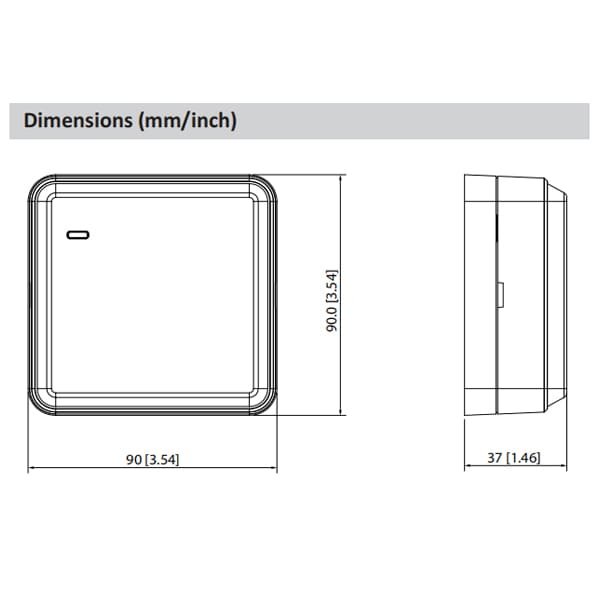

| Dimensions (with base) | 90 mm × 90 mm × 37 mm (3.54″ × 3.54″ × 1.46″) |
| Weight (with base) | 103 g (0.23 lb) |

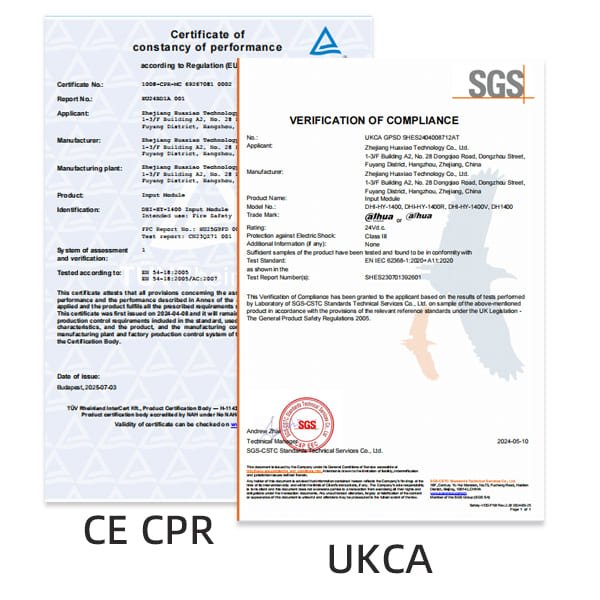

| Compliance Standard | EN54-18 |
