Description
Manual Call Point Features and Benefits
• EN 54-11:2001 + A1:2005

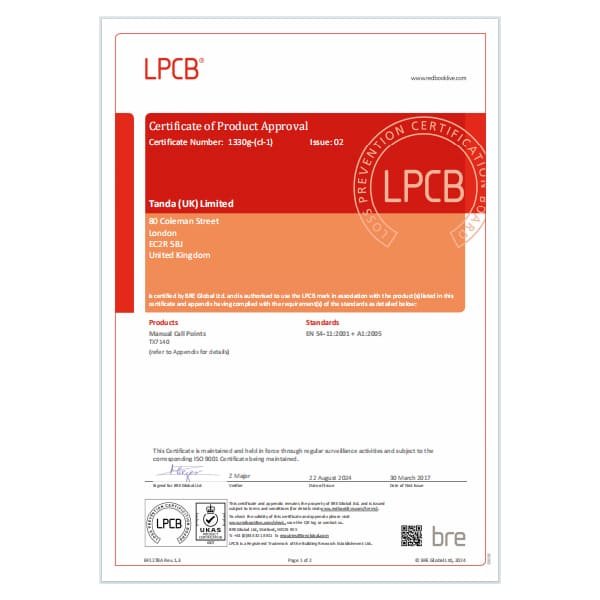

• LPCB Approved
• Using microprocessor technology
• Digital addressing
• Non-breakable glass and hammerless
• Safe to operate and easy to reset
• Semi-flash Mounted, indoor application

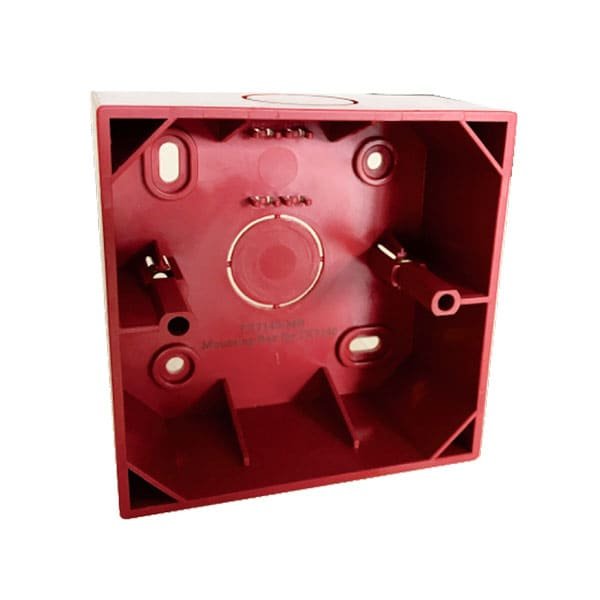

• Optional Backbox for Surface mount (TX7004-MB)
Technical Specification
Listed: LPCB / CE-CPR
Power Rating
Input Voltage: 24VDC [16V to 28V]
Compliance: EN 54-11:2001 + A1:2005
Call Point
Current Consumption Standby: 0.6mA, Alarm: 1.8mA
Protocol/Addressing: T&A, Value range from 1 to 254
Indicator: Single LED / Steady On-when pressed
Material / Colour: Fireproof ABS / RED Glossy finishing

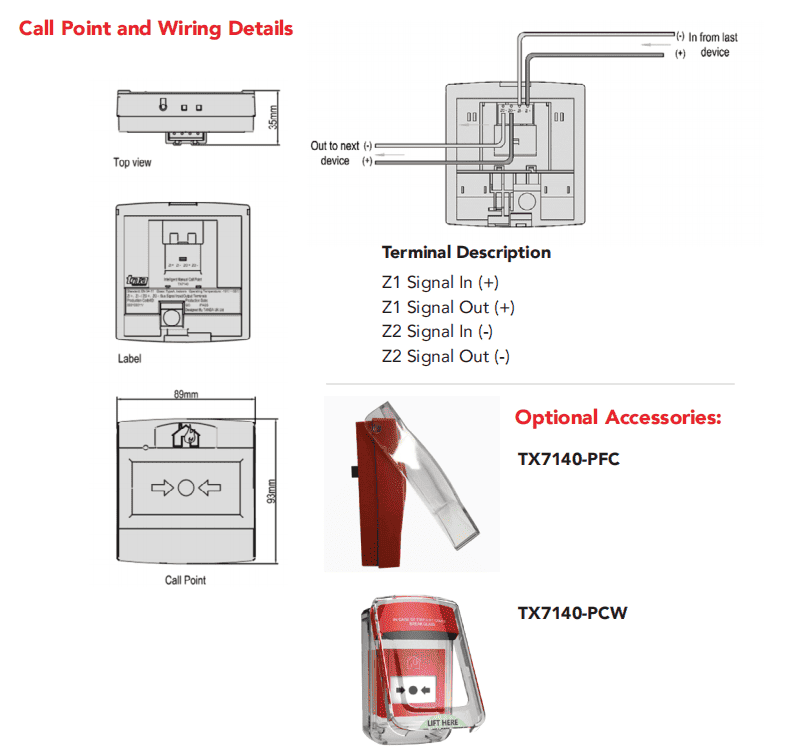

Dimension: 89 mm x 93 mm x 35 mm
Weight: 102g (with Base), 80g (without Base)
Class: Type A, Indoors
Operating Temperature: -10°C to +55°C
Ingress Protection Rating: IP43
Humidity: 0 to 95% Relative Humidity, Non condensing
