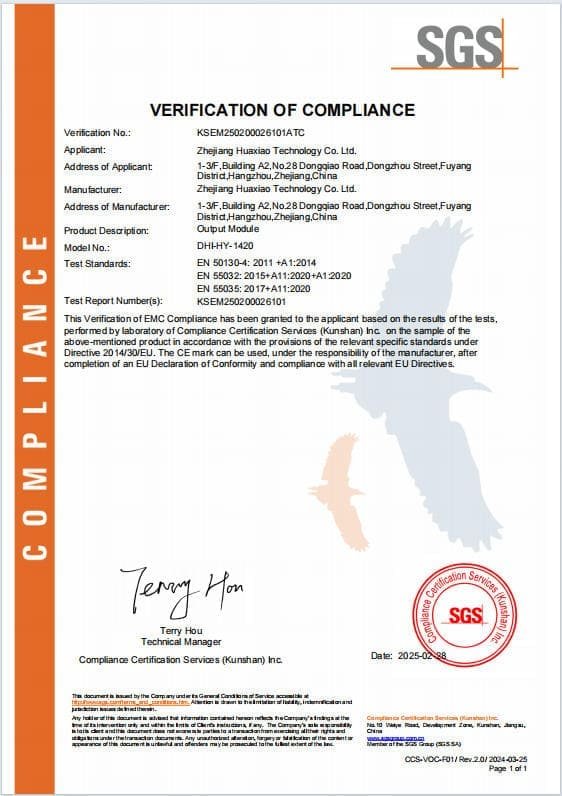

Description
1. Features
- Convenient wiring: Two-wire, polarity-free
- Reliable communication: Built-in microprocessor, stable performance
- Ultra-low power consumption: Ultra-low monitoring current and operatingcurrent
- Simple installation: With a plug-in structure, easy to install and construct
2. Technical Information
| Parameter | Introduction |
| Electrical | |
| Working Voltage | 24V DC |
| Current | l Monitoring current: 150μA
l Operating current: 8mA |
| Capacity of the Output Contact | 30V DC@1A |
| Indicator | Red indicator flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned |
| Communication Wiring | |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Electrical encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m |
| Environment | |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |

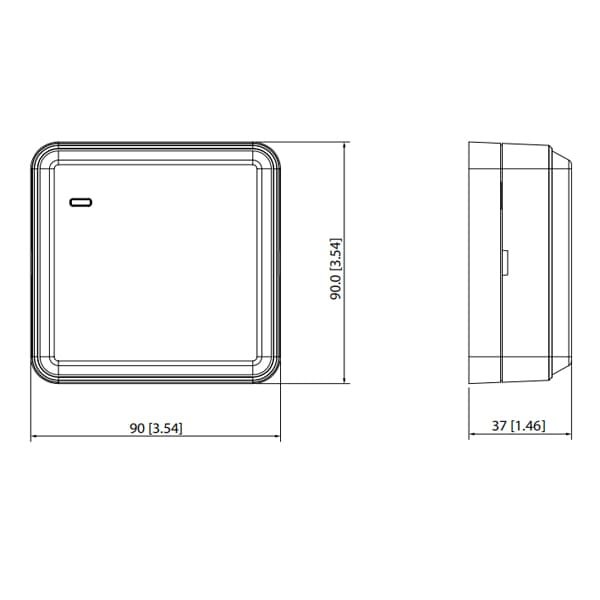

| Dimensions (with base) | 90 mm × 90 mm × 37 mm (3.54″ × 3.54″ × 1.46″) |
| Weight (with base) | 117 g (0.26 lb) |
3. FAQ
| Problem | Solutions |
| The indicator light of the module flashes quickly, and the screen of Fire Alarm Control Panel displays “Add or replace equipment” | While adding or replacing equipment, re-register in the System Debugging menu on the Fire Alarm Control Panel |
| The indicator light of the module flashes quickly, and the screen of Fire Alarm Control Panel displays “LA repeated equipment information” | Find and take off the wrong coding device, rewrite the code with the encoder, and re-register on the Fire Alarm Control Panel after installation |
| The indicator light of the module does not light up, and the screen of Fire Alarm Control Panel displays “Registered device is offline” | Check whether the device is installed in place; if it is installed correctly, check the circuit, measure and ensure that the voltage of the equipment signal line is between 16V DC and 28V DC |
| The indicator light of the module flashes quickly, and the screen of Fire Alarm Control Panel displays “Open Circuit (Short Circuit) Fault” | Terminal 3 and 4 should be connected with 47 KΩ resistor |
