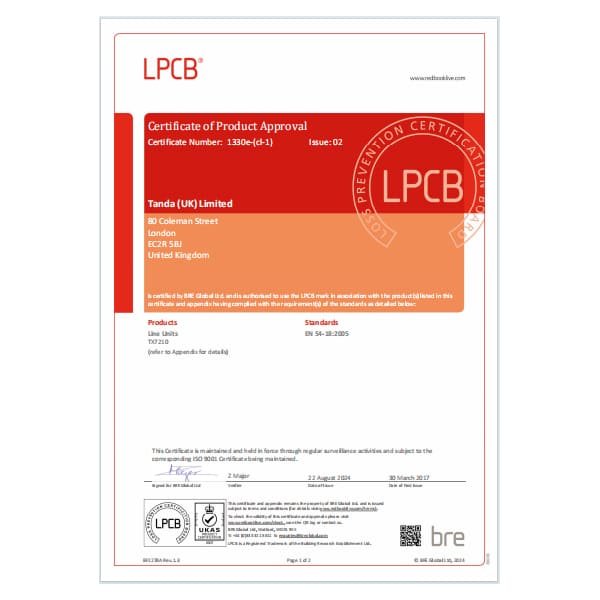

TX7210-Addressable-Single-Input-output-Module TX7210 wiring details TX7210-LPCB-Certification

Addressable Single Input/output Module

The TX7210 Addressable Single Input/output Module is characterized as one input or output volt free relay and control module. The unit is normally used for overriding equipment such as lift return, door holder, smoke extract fans, air handling unit, auto dialler to fire brigade, BMS and etc. The unit has built-in feedback signal feature, according to the pre-configured interface module command fire scenario, the alarm controller send out start command to the equipment required to start. After receiving the command, output module enables its relay to change state. Once the module is under control and operated a confirmation signal will be sending back to the alarm controller. In addition, the unit incorporates an intelligent processor that provides automatic monitoring for both open and short circuit of the input signal line.

SKU:

TX7210

Certification:

LPCB

Brand:

Get Price List

Description

Addressable Single Input/output Module Overview

The unit manufactured base on the requirement of EN 54 part 18, European Standard. The unit is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.

Features and Benefits

• EN54-18:2005 Compliance
• LPCB Approved
• Built-in MCU processor and digital addressing
• 24Vdc/3A Output relay contact and

Control module

• Input Fire or Supervisory signal configuration
• LED status indicator
• Onsite Adjustable Parameter
• Loop or external power input
• Aesthetically pleasing designSurface mounting with fix base for simple installation

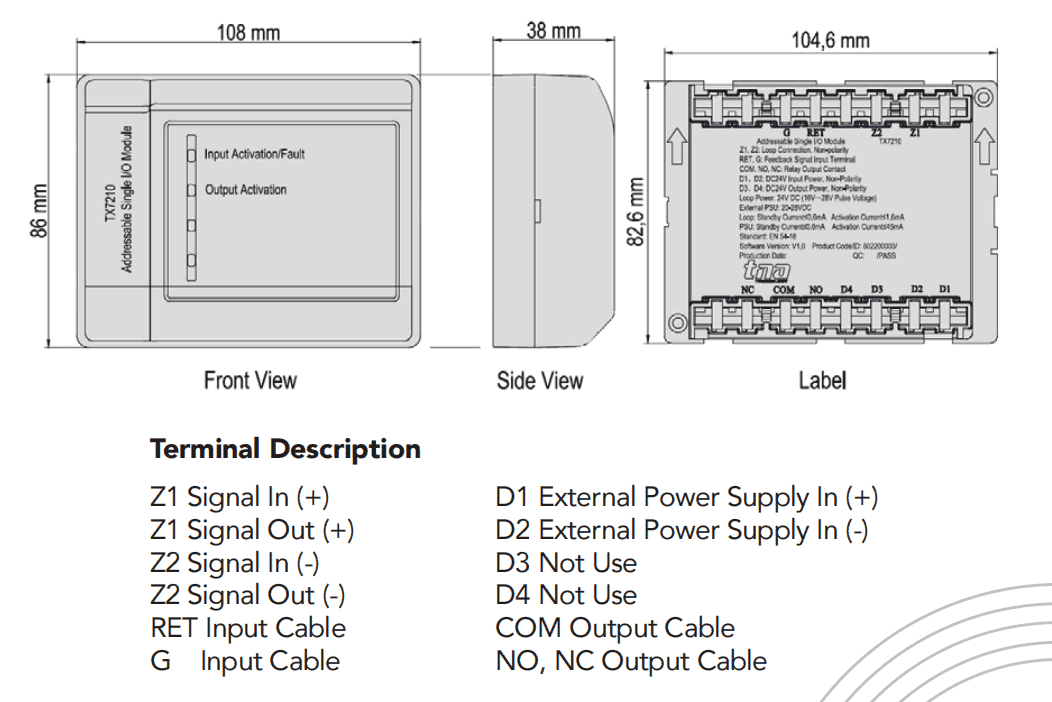

TX7210 wiring details
TX7210 wiring details

Additional information

Cerfication

LPCB
Listed LPCB / CE-CPR
Compliance EN54-18:2005
Power Rating
Input Voltage Loop Power:24VDC [16V to 28V]
External PSU 20 to 28VDC
Current Consumption Loop: Standby 0.6mA, Alarm: 1.6mA
External PSU Standby 0.6mA, Alarm: 45mA
Control output voltage 24VDC / 2A rating
Module
24VDC / 2A rating Normally Open dry contact
Input Resistance 5.1Kohms/ ¼ W
Protocol/ Addressing T&A, Value range from 1 to 254
Indicator Status Normal: Single blink/Active:Steady/Fault: Double Blink
Material / Colour ABS / White Glossy finishing
Dimension /LWH 108 mm x 86 mm x38 mm
Weight 170g (with Base), 92g(without Base)
Operating Temperature -10°C to +50°C
Ingress Protection Rating IP30
Humidity 0 to 95% Relative Humidity, Non condensing

TX7210 wiring details

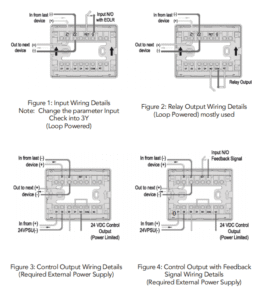

TX7210 wiring details 1
TX7210 wiring details 1

TX7210 wiring details
