Description

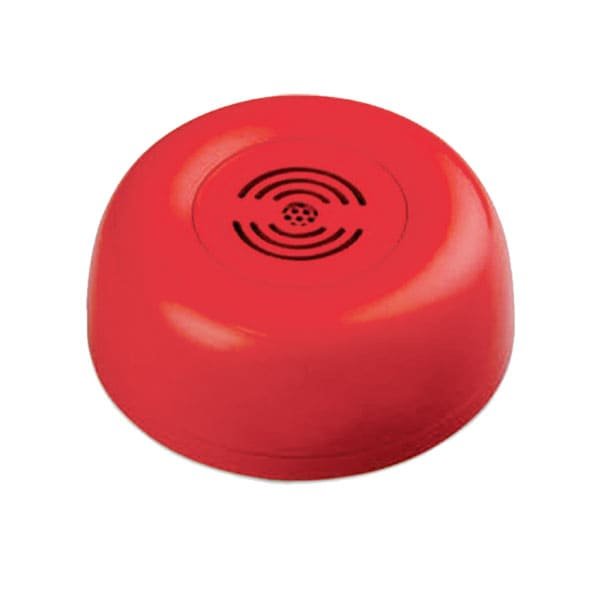

Addressable Sounder Overview
The parameters can be configured according to the requirement which include alarm tone from 17 different tones, single address or dual address mode and also setting of power mode to low current consumption in a simple programming.
The TX7320 manufactured base on the requirement of EN 54 part 3, European Standard.
The unit is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.
Features and Benefits
• EN54-3 Compliance
• Built-in MCU processor and digital addressing
• 17 tones Programmable sound output
• Programmable Evacuate or Pre-alarm/Evacuate signal
• Low and normal consumption mode
• One or Two addresses mode
• Onsite Adjustable Parameters
• Loop or external power input
• Aesthetically pleasing design
• Universal mounting with fix base for simple installation
