Description

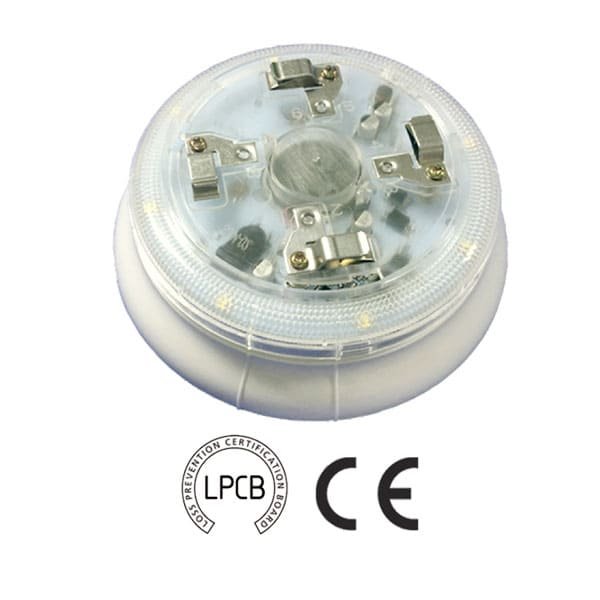

Addressable Sounder Strobe Base Overview
The TX7302 can change into different encoding modes such as Single-encoding Mode, Dual-encoding Mode 1 and Dual-encoding Mode 2 using a programming tool. And it has different starting modes such as started by a detector, a controller or other front-end linkage. In addition, the alarm tone can be configured according to the requirement from 17 different tones.
The unit manufactured base on the requirement of EN 54 part 3, European Standard.
The unit is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.
Features and Benefits
• 54-3:2001 + A1:2002 + A2:2006 Certified.

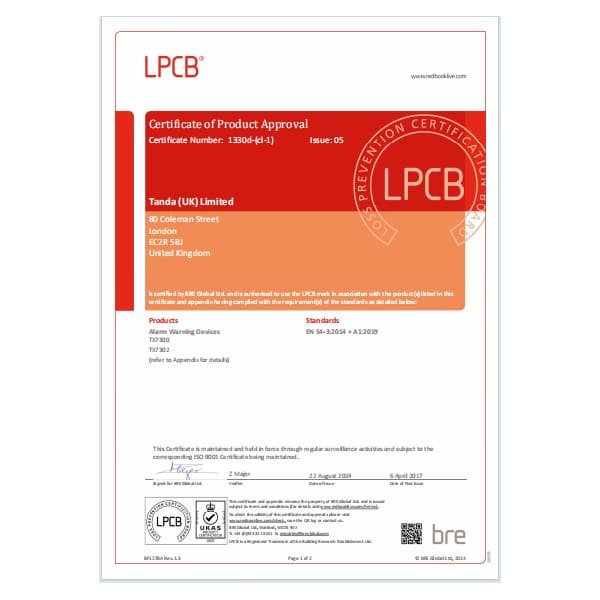

• LPCB Approved.
• Built-in MCU processor and digital addressing.
• 17 tones Programmable sound output (Note: Tone 14, 16 and 17 are recognized by LPCB).
• Encoding modes such as Single-encoding Mode, Dual-encoding Mode 1 and Dual-encoding Mode 2.
• Programmable Evacuate or Pre-alarm/Evacuate signal.
• 8 highlights LED status cluster
• Be started directly by a detector
• Onsite adjustable parameters
• Loop power input
• Aesthetically pleasing design
• Mounting base using TX7980 (Excluded).
