DUCT PROBE

Name: DUCT PROBE - firealarmdemo.com
SKU: TX7988

A HVAC system supplies conditioned air to virtually every part of a building. Any smoke introduced into this air duct system is thus spread to the entire building. The Duct Probe is designed such that samples of air passing through the duct are constantly monitored by the inside Optical Smoke Detector. When suffi-
cient smoke is sensed, an alarm signal is initiated at the Fire Alarm Control Panel monitoring the detector, and appropriate action can be taken to shut off fans and blowers and change over air handling system, etc. This can isolate toxic smoke and fire gases or prevent their distribution throughout the areas served by the duct system.

SKU:

TX7988

Certification:

Brand:

Tanda UK

Description

Description

DUCT PROBE Features and Benefits

• Simple & Compact Design
• Anti-Corrosion duct detector housing
• Transparent Lid for easy observation
• Excluding Optical Detector TX7100
• Adjustable Sampling tubes on site.
• Customize sample tube is available upon request

Technical Specification

Duct Probe

Housing Material: Polystyrene
Lid Cover: Transparent Polycarbonate
Internal Mounting Plate: Galvanized Steel Plat

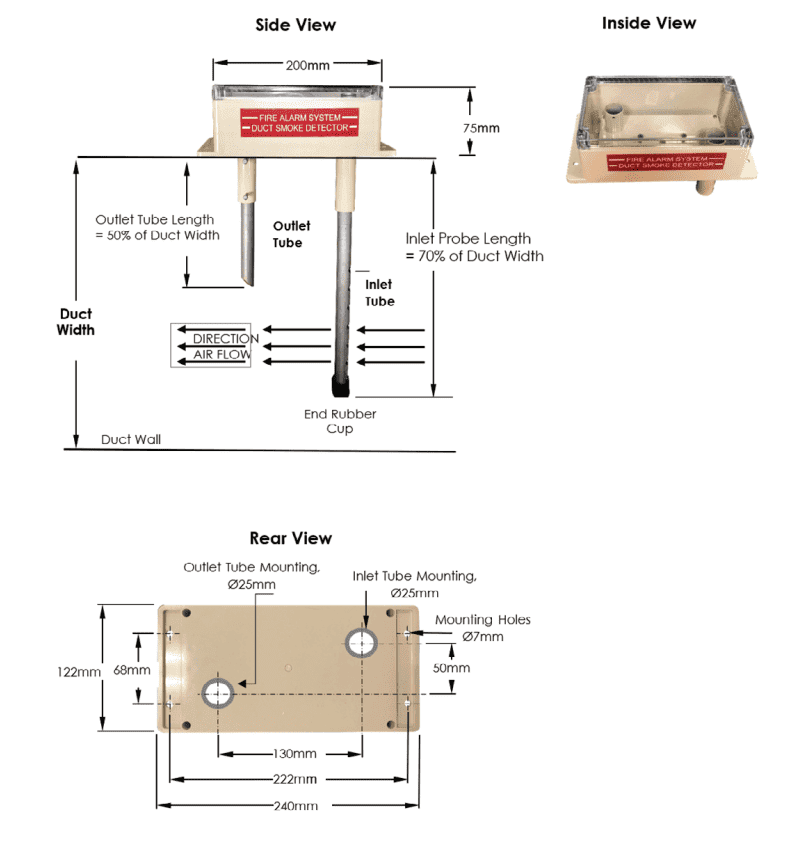

Sampling tubes: Inlet: Diameter: 20 mm; Length: 700 mm Aluminum pipe
(Standard Supplied): Outlet: Diameter: 20 mm; Length: 500 mm Aluminum pipe
Colour: Beige
Duct Probe Dimension: 240 mm L x 122mm W x 75mm H
Smoke detector: TX7100 inclusive

Operating Environment

IP Rating: IP65
Temperature: -10℃~+85℃
Relative Humidity: ≤95%, non-condensing
