Description
Intelligent Addressable Smoke & Heat Detector Overview
The TX7120 is aesthetically pleasing with unobtrusive design that will complement modern building designs. The unit incorporates an intelligent processor that provides Algorithm map, inbuilt A/D converter, Drift compensation, and Self-Diagnosis and History log.
Secure and speedy communication through the on-board processor enables the detector to make its own decision, resulting in greater automation. In the event of fire, the integral microprocessor analyses the signal according to factors such as signal strength and rate of increase, then confirms these patterns with the pre-programmed fire scenarios, smoke and heat patterns including rate of rise temperature, for a faster and safer response.
Once it is confirmed, the LED indicates the sensor status and parallel sending communication signal to the control panel. The TX7120 detector is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.
Features and Benefits

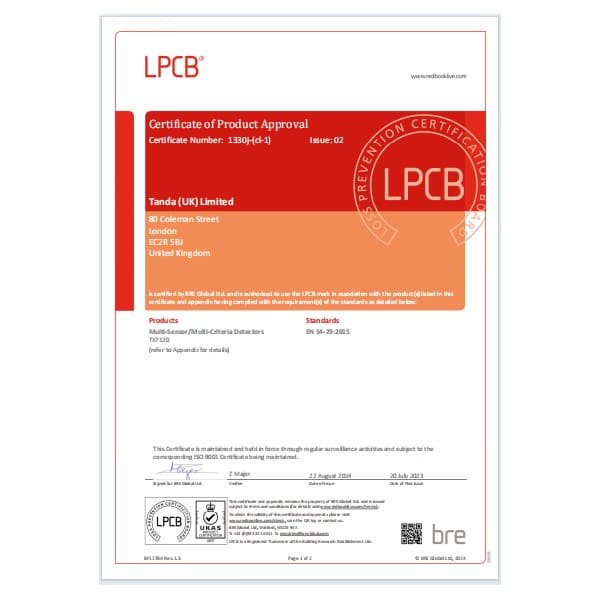

• EN54-29 Compliance
• Smoke and Heat Sensor
• Using microprocessor technology with memory capacity up to 10 events
• Analogue sending and digital addressing
• Provide real time algorithm to the control panel
• Smart linear drift compensation
• 360-degree visual indicator
• Onsite Adjustable Parameter
• Removable chamber against dust and small insect
• Ancillary remote indicator output
• Aesthetically pleasing design
