Description

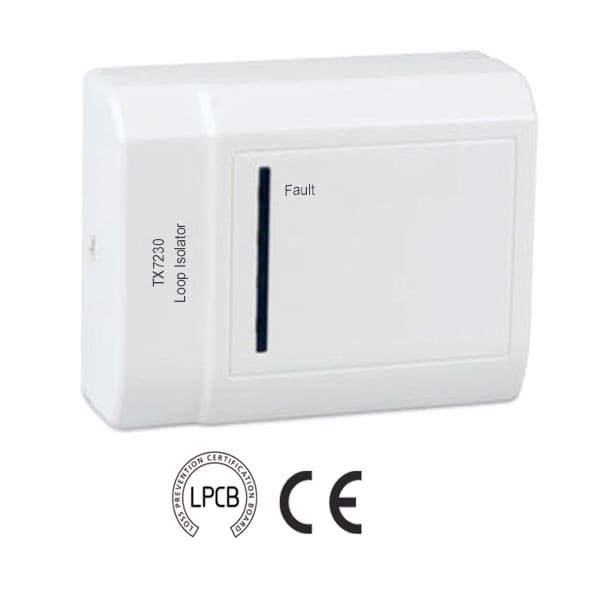

Isolator Module Overview
In the event of short circuit on the detection loop the TX7230 Isolators either side of the loop will detect the problem and open circuit and isolates the faulty part of the loop, enabling other devises on the unaffected part of the loop to operate normally. The module will continue to monitor for the fault to be repaired, once the fault is cleared the isolator will automatically reinstate the effected part of the loop.
The TX7230 is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer.
Features and Benefits
• EN54-17:2005 Compliance

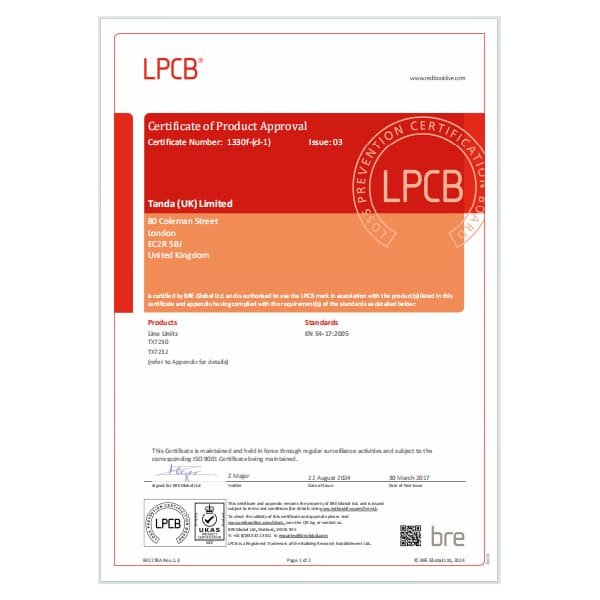

• LPCB Approved
• In the event of a short circuit isolates faulty parts of the loop.
• Automatically resetting once the fault has been cleared
• Can monitor up to 70 devices
• LED status indicator
• Loop powered device
• Aesthetically pleasing design Surface mounting with fix base for simple installation
