Description

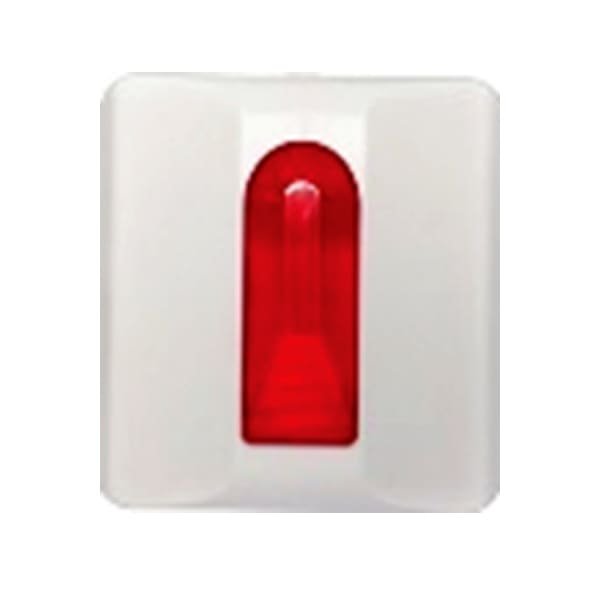

LED Remote Indicator Features and Benefits
Provide 360-degree Visual indication for TX7 addressable seriesWide Operating voltage Aesthetically pleasing design Surface Mounting with fix base for simple installation.
Technical Specification
Power Rating
Voltage Rating: 5 to 35 VDC
Current Consumption: Standby: 0 A; Alarm: 20 mA
Cable/ Terminal: From 0.4 to 2.50 mm2 solid core fire resistance
Dimension / Height: Diameter 79 mm / 19 mm
Color: White finishing
Operating Environment
Temperature: 0℃~+95℃
Relative Humidity: ≤95%, non-condensing
