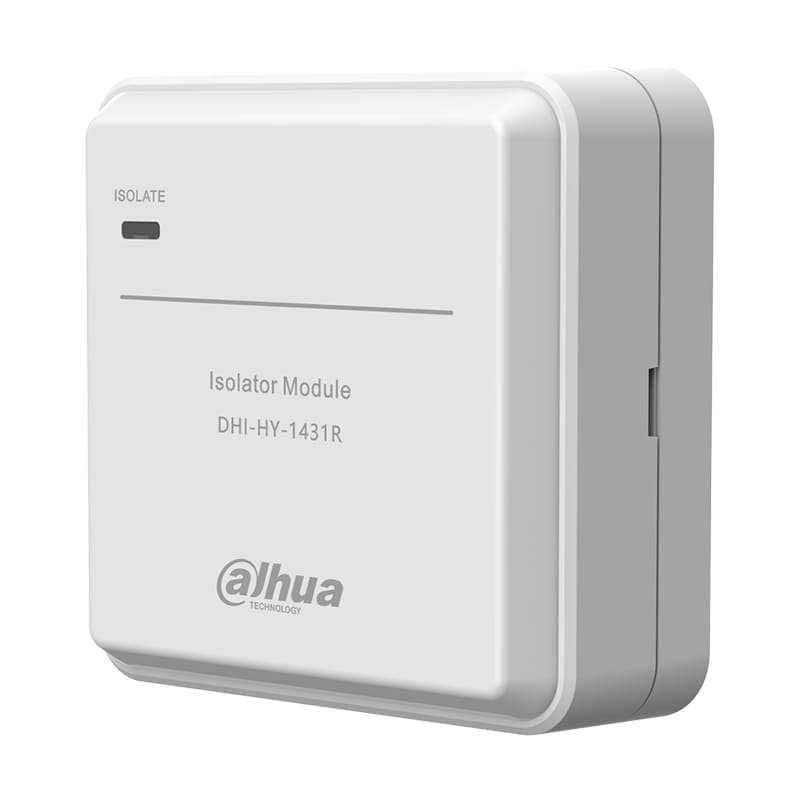

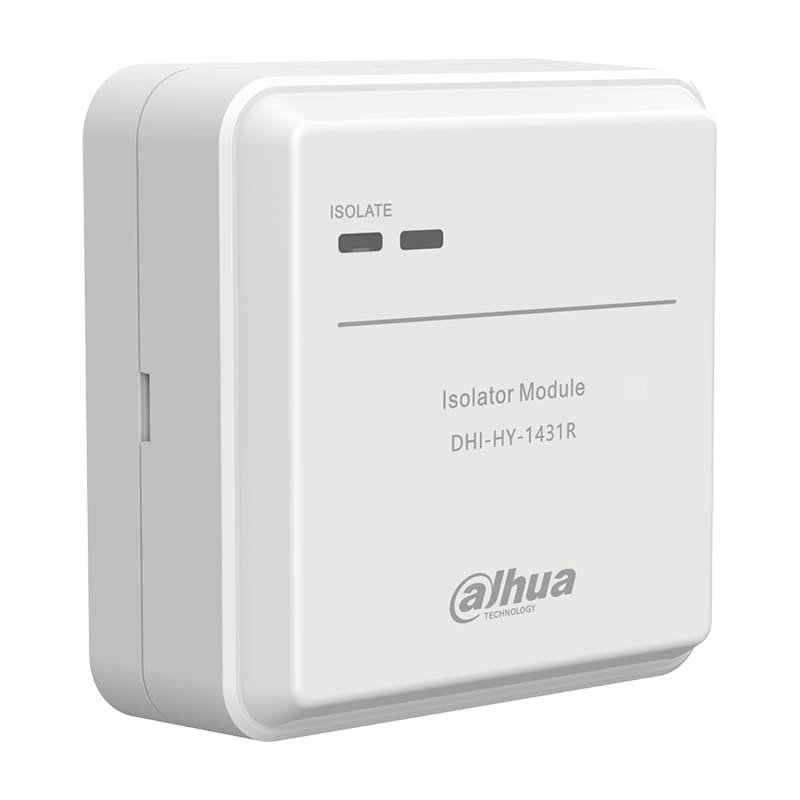

Description
Feature
- Compact Solution: With the assistance of a loop bus switch module and wiring, this system can transition from a radial to a loop circuit without replacing control panel
- Convenient wiring: Polarity-free with automatic identification
- Simple configuration: Shares the same configuration logic as theradial circuit without any special requirements
Technical Information
| Parameter | Introduction |
|---|---|
| Electrical | |
| Working Voltage | DC16V~ DC28V |
| Current |
|

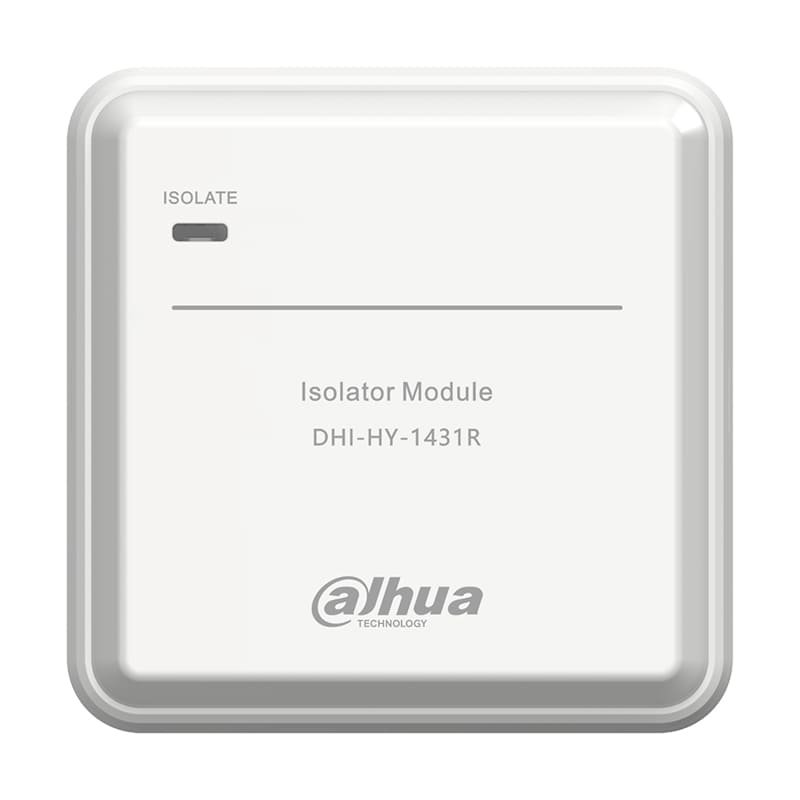

| Indicator | Isolate: Yellow LED is constantly off when works normally and remains lit when short circuit occurs |
| Communication Wiring | |
| Wiring | Two-wire |
| Communication Distance | ≤ 1500 m |
| Environment | |
| Operating Temperature | –10℃ to +55℃ (+14℉ to +131℉) |
| Storage Temperature | –20℃ to +65℃ (–4℉ to +149℉) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |

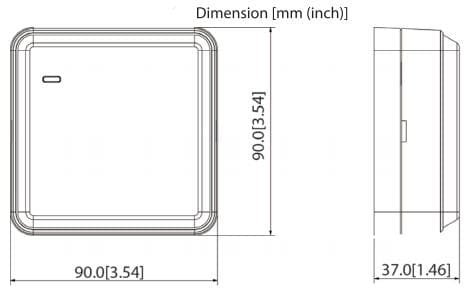

| Dimensions (with base) | 90 mm × 90 mm × 37 mm (3.54″ × 3.54″ × 1.46″) |
| Weight (with base) | 136.1g (0.3lb) |
FAQ
| Problem | Solutions |
|---|---|
| Output terminal is short-circuited, the isolate indicator does not light up |
|
