Description

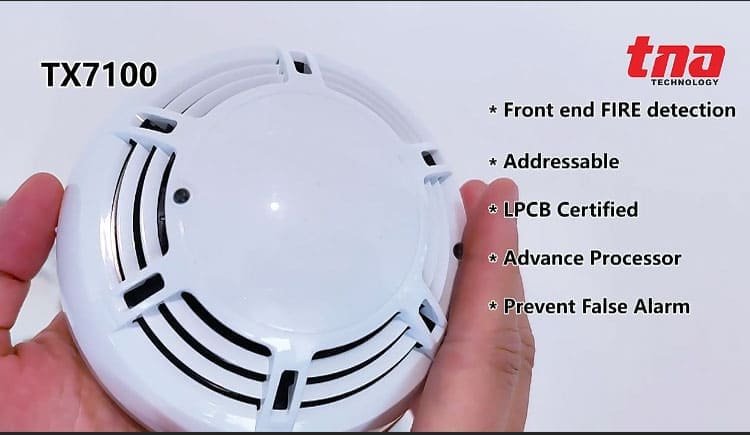

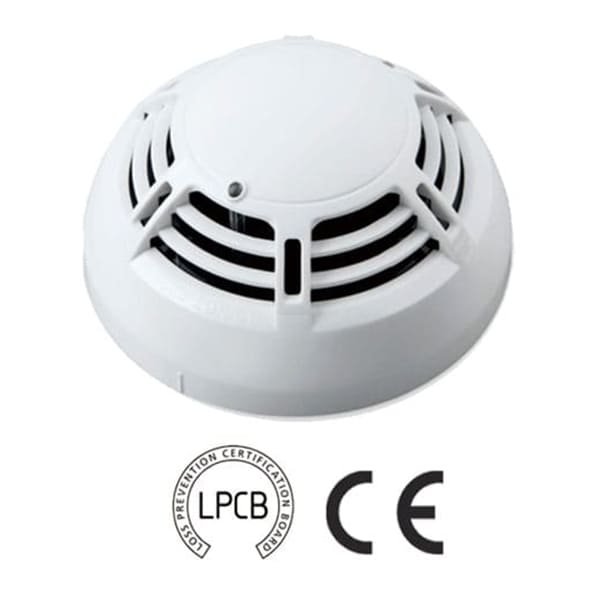

Overview – LPCB Ceiling Mount Smoke Detector
The unit incorporates an intelligent processor that provides Algorithm map, inbuilt A/D converter, Drift compensation, and Self-Diagnosis and History log.
Secure and speedy communication through the on-board processor enables the detector to make its own decision, resulting in greater automation. In the event of fire, the integral microprocessor analyses the signal according to factors such as signal strength and rate of increase, then confirms these patterns with the pre-programmed fire scenarios and smoke patterns, for a faster and safer response. Once it is confirmed, the LED indicates the sensor status and parallel sending communication signal to the control
panel.
The TX7100 detector is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture Tanda, to avoid addressable communication compatibility problem
Features and Benefits
• EN54-7:2000 +A1:2002 +A2:2006 Compliance.
• LPCB Approved.
• Using microprocessor technology with memory capacity up to 10 events.
• Analogue sending and digital addressing.
• Provide real time algorithm to the control panel.
• Smart linear drift compensation.
• Onsite adjustable parameter.

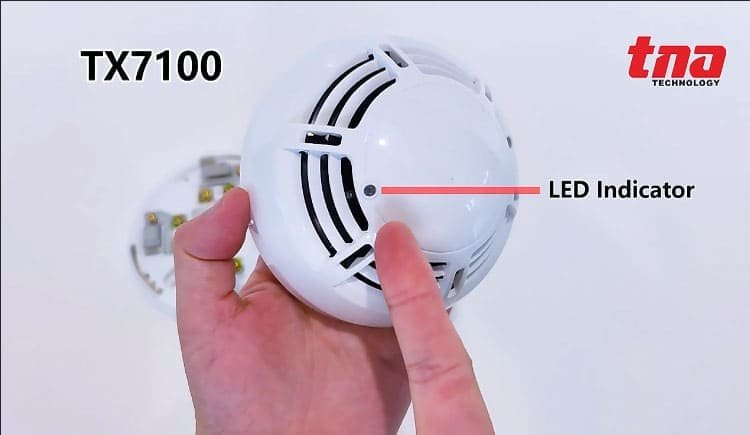

• 360-degree visual indicator.
• Removable chamber against dust and small insect.
• Ancillary remote indicator output Aesthetically pleasing design.
