Description
1. Features and Benefits
• Certified EN54-2:1997 +A1:2006, EN54-4:1997 + A1:2002 + A2:2006.

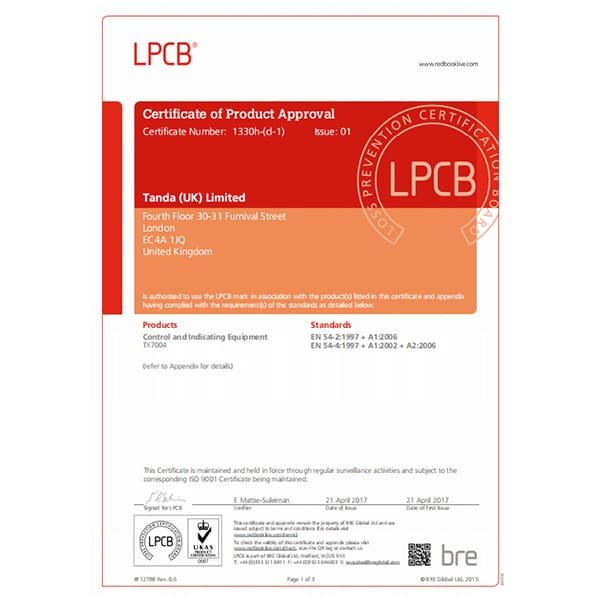

• LPCB Approved.
• Using advance microprocessor technology with Large memory capacity.
• Enhance user interface combining LCD Touch screen and keypad access.
• Support real time visual algorithm.
• Enhance false alarm prevention.
• Keypad and PC programming.

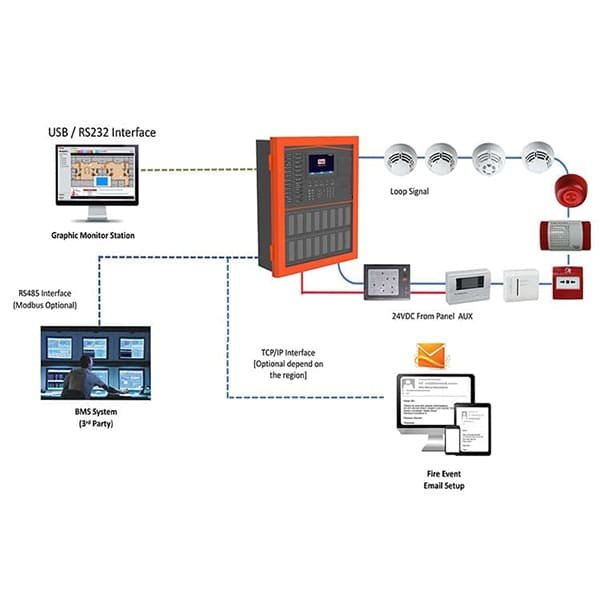

• Built-in Multiple interface protocol such as USB/Ethernet/CanBus/ Serial/RS485 (Available only in TX7004/4 Panel).
• Support Loop Powered devices for extra saving on cable cost.
• Built-In Printer and 160 LED Zones Indicators.
2. Commissioning Advantage
• Auto Enrolling of Devices.
• Loop Mapping with colour coding status.
• Monitor device mismatch and dual address conflict.
• Command Builder to create requirements for fire event scenario.
• With Loop protection against power surge
• One-man test with On/Off sounder Programming Protection.
3. System Capacity
• Maximum 4 loop in network application built-in 4-in-1 Communication card.
• Maximum 6 loop in standalone basis.
• Support 254 Devices (1,524 ideal).
• Network up to 512 Node.
• Programmable Capacity.
• Zones up to 3000.
• Sounders Groups 1-1000.
• Modules Groups 1001- 2000.
• Built-in 160 LED Zones Indicator.
