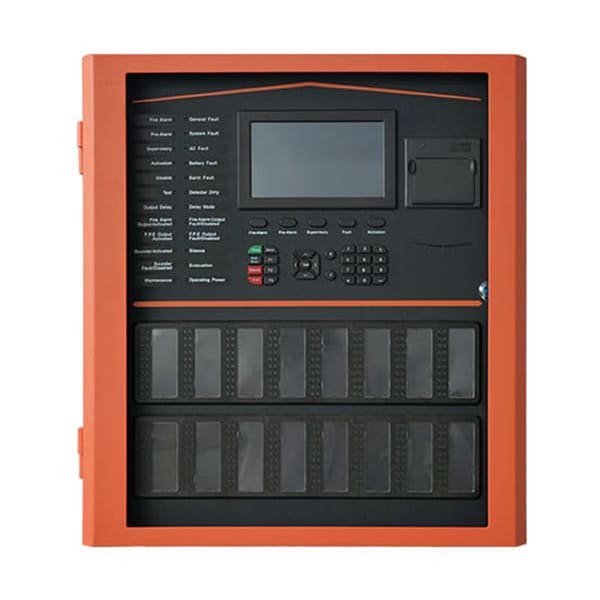

Description
Features and Benefits
• Compliance EN54-2 and EN54-4.
• Using advance microprocessor technology with Large memory capacity,
• Built-in USB port for commissioning purpose.
• Enhance user interface combining LCD Touch screen and keypad access.
• Support real time visual algorithm.
• Enhance false alarm prevention.
• Keypad and PC programming .
• Built-in Multiple interface protocol such as USB/Ethernet/CanBus/ Serial/RS485 (Available only in TX7004/4 Panel).
• Support Loop Powered devices for extra saving on cable cost.
• Built-In Printer and 160 LED Zones Indicators.
Commissioning Advantage
• Auto Enrolling of Devices.
• Loop Mapping with colour coding status.
• Monitor device mismatch and dual address conflict.
• Command Builder to create requirements for fire event scenario.
• With Loop protection against power surge
• One-man test with On/Off sounder Programming Protection.
System Capacity
• Maximum 8 loop in network application
• Support 254 Devices (1,524 ideal)
• Network up to 512 Node
• Programmable Capacity
• Zones up to 3000
• Sounders Groups 1-1000
• Modules Groups 1001- 2000
• Built-in 160 LED Zones Indicator
