Description
Power Amplifier Features and Benefits
• Self-check is available
• Auto/Manual mode
• The monitor can be muted automatically to eliminate audio return while the microphone is used to broadcast
• Automatically switching between the main power and the standby power
• Fault uploading
• Over heat protection
• Providing 24VDC off-set for local audio output line and line-checking module
• Communicate with TG7100 Broadcast Control Panel through RS485
| Power Rating | |
| Main Power | 220VAC（187V~242V）50Hz |
| StandbyPower | 220VAC（187V~242V）50Hz |
| Power Amplifier | |
| Local Address | 1~10 ed codes （binary code, no repeated codes) |
| InputResistance | 10KΩ |
| Input Level | 775mV |
| Stable VoltageOutput | 120V |
| Frequency Response | 80Hz～8KHz（90V～145V |
| HarmonicDistortion | ≤5% |
| Noise Level | ＜37mV |
| Materials | |

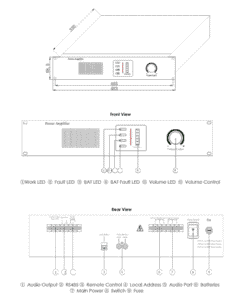

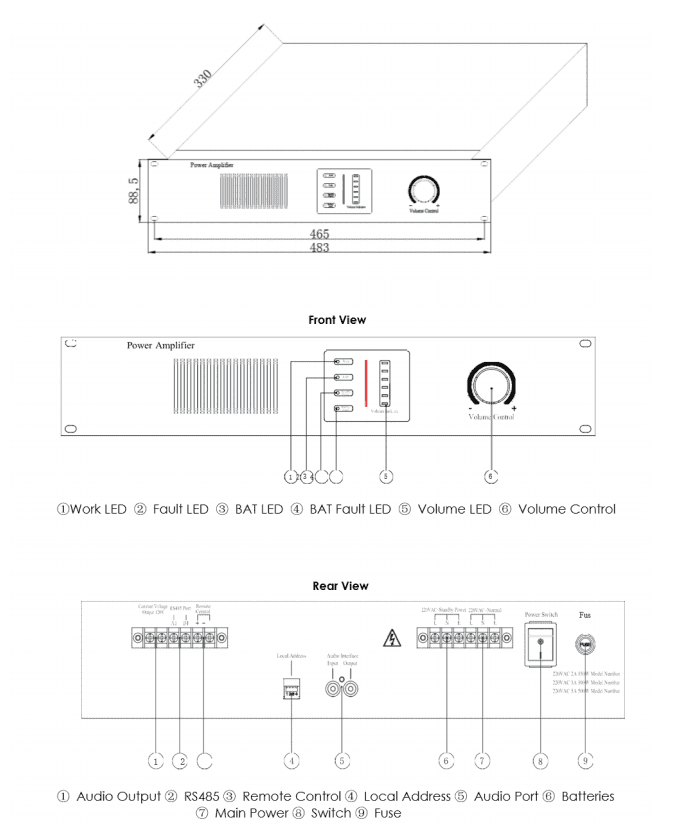

| Dimensions Lx W x H | 483.0mm×330.0mm×88.5mm |
| Weight | 6.5kg |
| Operating Temperature | -10℃~+40℃ |
| Humidity | ≤95% Relative Humidity, Non condensing |
