Description

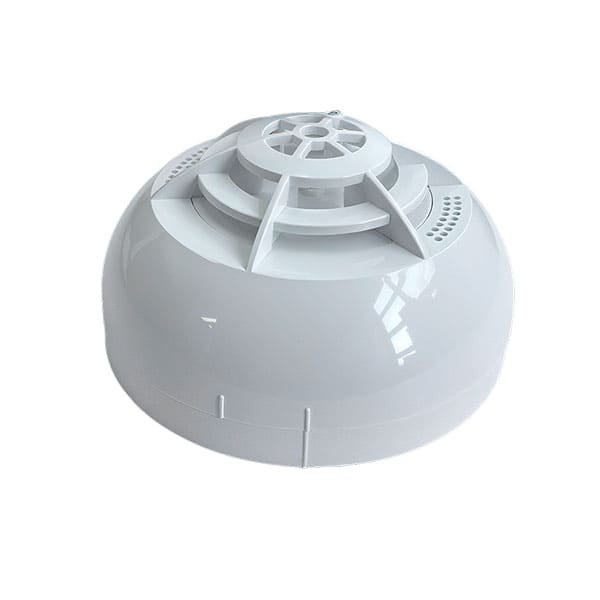

Wireless Heat Alarm Overview
The TX3130 Wireless Battery-Operated Dual Heat Alarm is the most suitable device for household use. When properly installed and maintained, it can transmit sound and LED indication in the initial stage of the fire. Built in 433MHz communication chipset to transmit the signal in real time to gateway, widely used in home automation, store security and other fire safety monitoring. The unit is creatively designed that complements modern housing lay-outs.
Technical Specification
Power Rating
Battery Required: 3 VDC (2 x 1.5 AA) batteries
Current Consumption: Standby 30µA, Alarm:20mA
Detector
Transmission Frequency: 433MHZ
Transmission Distance: 50 meters maximum (Open area)
Heat Class Type: A1R
LED Indicator: Single LED / 360-degree Visual/ Normal: Green LED Flash every 75 seconds Alarm: Red LED Steady Light, beep alarm Faulty: Yellow LED Flash every 45second, short beep alarm
Material /Colour: ABS / White Glossy finishing
Diameter /Height: 100.3 mm / 51 mm (with Base)
Operating Temperature: -10°C to +55°C
Humidity: 0 to 95% Relative Humidity, Noncondensing
