Description
Wireless Sounder Strobe Overview

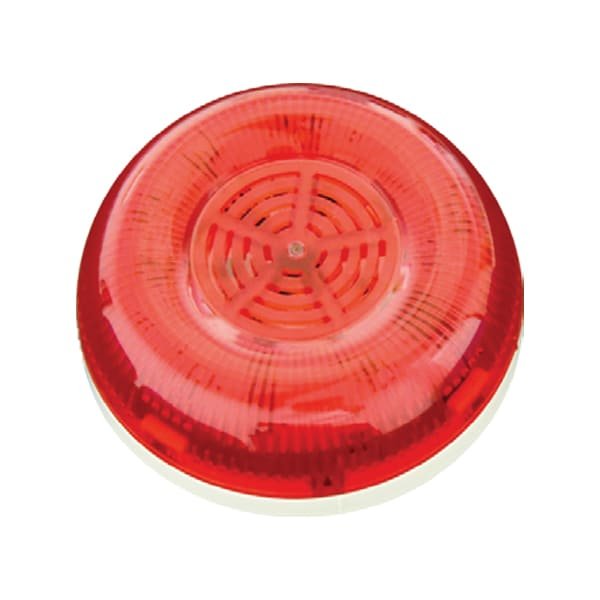

The TX3309 Wireless Sounder Strobe is alarm warning device used to notify persons in the vicinity of the occurrence fire emergency in order the person to take appropriate measures. Built in 433MHz communication chipset to transmit the signal in real time to gateway, widely used in home automation, store security and other fire safety monitoring. The unit is creatively designed that complements modern housing lay-outs
| Power Rating | |
| Battery Required | 3 VDC (2 x 1.5 AA) batteries |
| Current Consumption | Standby 30µA, Alarm:8mA |
| Device | |
| Transmission Frequency | 433MHZ |
| Transmission Distance | 200 meters maximum (Open area) |
| Sound Level Pressure | 100dB at 3 meters |
| Panel interface | Wireless/ Wired interface to pane up to 50 units |
| Operating Temperature | -10ºC~+55ºC |
| Material and Color | ABS / Red |
| Diameter / Height | 100.3 mm / 34 mm (with Base) |
| Weight | 145g (with Battery) |
| Humidity | 0 to 95% Relative Humidity, Noncondensing |
