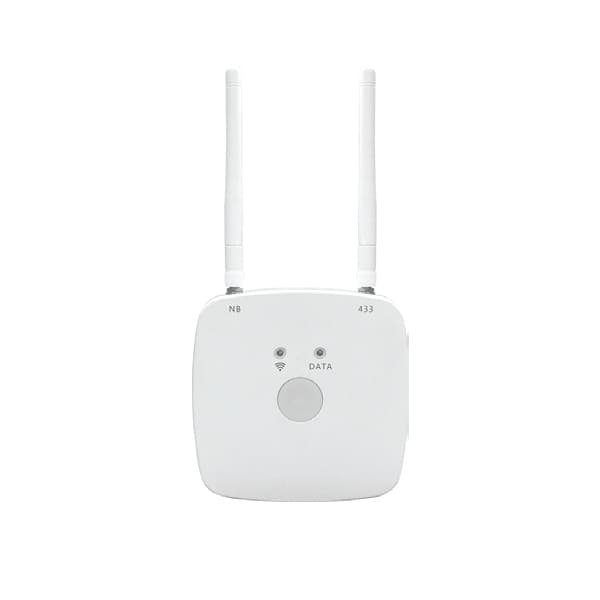

Wireless to IoT Gateway Overview
The TW3201 Wireless to IoT Gateway is used for 433MHz wireless detector to send signal to IoT platform. It supports software and hardware multi-stage filtering and improves the anti-interference anti-inhibition ability. With built-in NB-IoT communication chipset to transmit the signal in real time to the IoT platform, widely used in home automation, store security and other fire safety monitoring.
Technical Specification
| Power Rating | |
| Input Voltage | AC220V 50Hz, USB 5V External PSU: 24 VDC [15V to 28V] |
| Power | 2W |
| Interface Gateway | |
| Transmission Frequency | 433MHz |
| Transmission Distance |
200 m (open area) |
| Communication | NB-IoT |
| LED Indicator | Data indicator / Status indicator |
| Material / Colour | ABS / White Glossy Finishing |
| Dimension | 110.8 mm x 110.8 mm x 32.4 mm |
| Weight | 150g |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 to 95% Relative Humidity, Noncondensing |
