Description

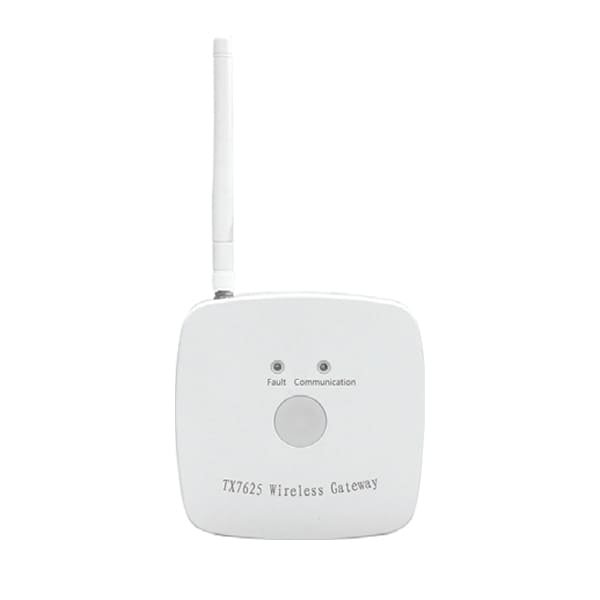

Wireless Gateway Overview
The TX7625 Wireless Gateway is used for interfacing the TNA 433MHZ wireless devices to TX7002 and TX7004 and TX7008 control panel.
This gateway is connected in the loop with fixed digital addresses and required an extra 24V power cable. It can transmit the information of the wireless front-end devices to the fire alarm control panel through the loop signaling bus. The fire alarm control panel can also send reset, other control commands to the wireless devices.
Technical Specification
| Power Rating | |
| Input Voltage | Loop Power:24VDC [15V to 28V] External PSU: 24 VDC [15V to 28V] |
| Current Consumption |
Loop: Standby 2.5mA / (Normal Power) External PSU: Standby 25mA |
| Interface Gateway | |
| Addressing Protocol | T7.Value range from 1 to 253 |
| Transmission Distance | 300 m ( open area) |
| Communication | 433Mhz |
| Capacity | 50 points |
| LED Indicator | Data indicator / Status indicator |
| Material and Color | ABS / White Glossy finishing |
| Diameter / Height | 110.8 mm x 110.8 mm x 32.4 mm |
| Weight | 150g |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 to 95% Relative Humidity, Noncondensing |
